What does startingDeadlineSeconds mean?

I was working on Kubernetes CronJob and I was wondering what startingDeadlineSeconds is. There is an official documentation, but I am still confused after reading it.

After looking at the source code, I think startingDeadlineSeconds means that if a CronJob controller cannot start a job run on its schedule, it will keep retrying until startingDeadlineSeconds is reached.

Before showing a few examples, we need to clarify some concepts:

Controller check: CronJob controller checks things (watching and syncing jobs) every 10 seconds.

Schedule: the time to execute the job according to the given schedule expression.

Job run: a job object is created about once per execution time of its schedule.

Examples

Below, I will use a few examples to demonstrate its use cases.

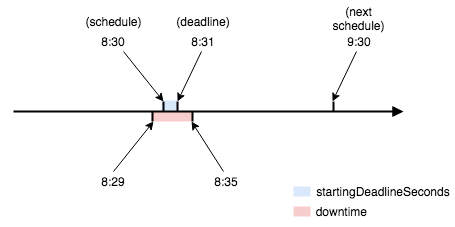

#1. Assume that the schedule is 8:30, 9:30, … and startingDeadlineSeconds is 60 seconds. During 8:29-8:35, there is a downtime to start a job run. In this case, the job will not be executed because when the system comes back to healthy, the time is 8:35 that is after the deadline 8:31. The schedule at 8:30 is lost and the next schedule will be at 9:30.

This is the case when the interval between schedules is greater than startingDeadlineSeconds. What if it is lesser?

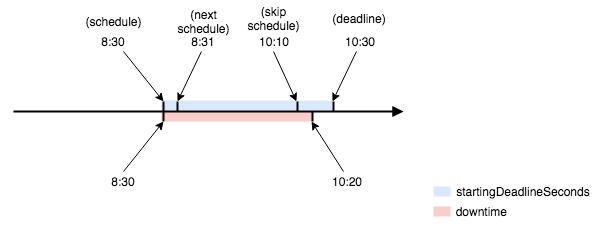

#2. Assume that the schedule is 8:30, 8:31, 8:32, …, for every minute and startingDeadlineSeconds is 2 hours. The downtime is between 8:30 and 10:20.

What will happen under this case? The CronJob controller will keep trying to start a job according to the most recent schedule. Once the number of schedule misses reaches 100 times, the controller will not try to start a job any more and logs the error

Cannot determine if job needs to be started. Too many missed start time (> 100). Set or decrease .spec.startingDeadlineSeconds or check clock skew.

Related github issue

I also found there are some redundant code that can be cleaned up in this part so that I submitted an issue:
